Foldable LED Grow Light Bar Module B-D
Products Introduction
The EASTGRACE Foldable LED Grow Light Bar Module B is a versatile, high-efficiency lighting solution designed primarily for indoor plant cultivation. This modular LED grow light features a foldable bar design that combines portability with robust performance, making it ideal for both hobbyist and commercial growers. It utilizes full-spectrum LEDs to mimic natural sunlight, supporting all stages of plant growth from seedling to flowering and fruiting. With models ranging from 720W to 1500W in the provided image (and up to 1500W in expanded variants), it emphasizes energy efficiency, uniform light distribution, and durability. Key highlights include Samsung/SANAN 2835 and Epileds 3030 LED chips, a PPE (Photosynthetic Photon Efficacy) of up to 2.4 μmol/J, and IP65 waterproofing for reliable use in humid environments.
Products Features
Dimming Capabilities
0-100% dimming via 1-10V or PWM controls, with options for app-based master controllers in larger setups, allowing precise adjustment for different growth stages.
High-Quality LED Chips
Equipped with SANAN 2835 and EPILEDS 3030 chips, offering high color rendering (Ra >80), low luminescence decay, and a lifespan exceeding 50,000 hours.
Foldable Design
180-degree foldability for compact storage, easy transportation, and quick installation, reducing setup time compared to rigid fixtures.

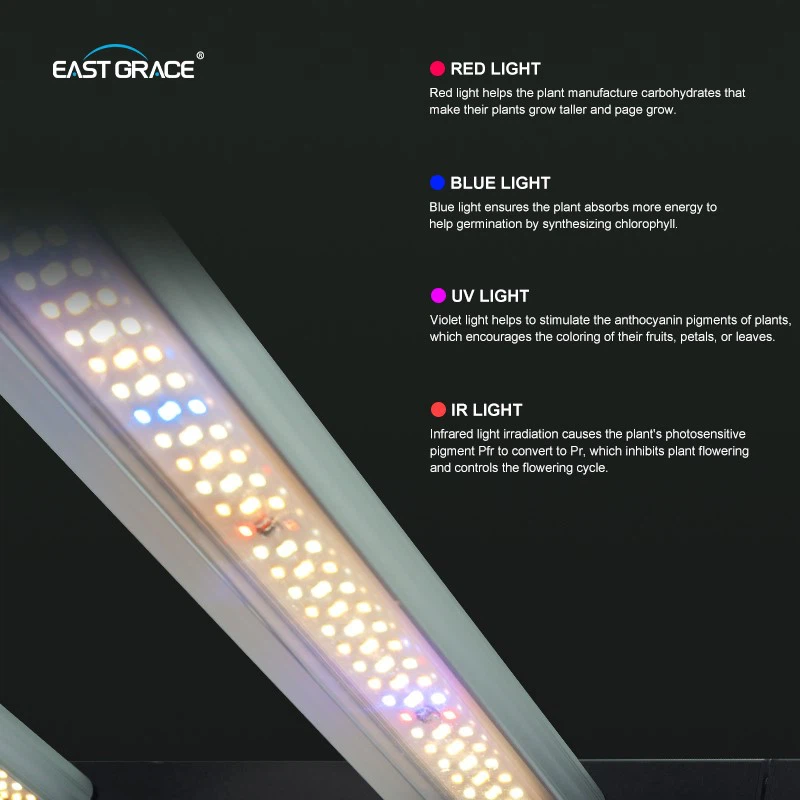

Full-Spectrum Lighting
Simulates natural sunlight with wavelengths covering blue (for vegetative growth), red (for flowering), UV (for plant defense and resin production), and IR (for enhanced photosynthesis and flowering). This promotes healthier plants with higher yields and better nutrient absorption.
Specification Options
Specification Sheet
| Model | EG-FBMGLB-720D-IN | EG-FBMGLB-1100D-IN | EG-FBMGLB-1500D-IN |
|---|---|---|---|
| Product Size(mm) | L1060*W1100*H41; 4*4ft |
L1560*W1100*H41; 4*5ft |
L1820*W1100*H41; 4*6ft |
| Power Consumption | 720 | 1100 | 1500 |
| LED Quantity | 2130 | 3195 | 4260 |
| PPFD@0.3m(umols/s/m2) | ~1600 | ~1800 | ~2500 |
| PPE (μmol/J) | ~2.4 | ~2.4 | ~2.4 |
| Spectrum | Full Spectrum (450nm blue, 660nm red; optional 395nm UV, 730nm IR) | ||
| LED Brand/Source | SANAN 2835 + EPILEDS 3030 | ||
| View Angle | 120° | ||
| Input Voltage | AC100~277V, 50/60Hz | ||
| Dimming | 1-10V/PWM | ||
| IP Rating | IP65 | ||
| Operating Temp | -15~45°C | ||
| Power Factor (PF) | >0.90 | ||
| Warranty | 1 Year | ||
| Materials | 6063 Aluminum | ||
| Flicker | Flicker-Free | ||
