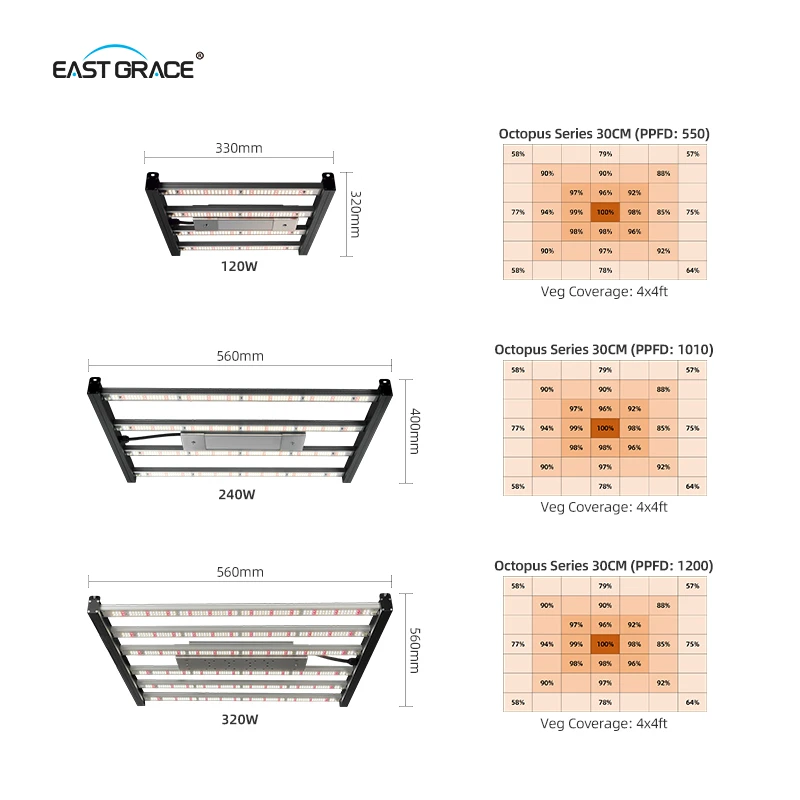

Product Specifications
| wattage | 120W / 240W / 320W | Covers the entire growth cycle from seedling stage to flowering, meeting requirements for various greenhouse heights. |
| PPE | 2.4umol/J | Integrating sphere measurements confirm energy savings of over 40% compared to traditional HPS lamps. |
| Dimming | 0-10V Dimming/PWM/Resistance Dimming | Supports stepless dimming and easily integrates with various greenhouse master control systems. |
| Product Materials | 6063 Aluminum | Ensure reduced chip light decay and extend the lifespan of the entire luminaire. |
| IP Rating | IP65 | Suitable for high-humidity greenhouse and spray environments. |
| Input voltage(V)/ Frequency(Hz) |
AC100~277V 50/60Hz | Wide-voltage design, compatible with major power grids in North America, Europe, and worldwide. |
Product Advantages
Smart Control provides commercial growers with significant savings on their labor
It offers three different dimming methods such as 0-10V, PWM (Pulse Width Modulation), R (Resistance), and also has RJ14/RJ12 connectivity. With one master controller, a user can daisy-chain up to 100 fixtures and has full RDU (Remote Device Access through User Interface) functionality to control and schedule lights using a smartphone.
High Efficiency (2.4 µmol/J PPE):
We have used the most advanced LEDs and have optimized the spectrum based on science; as a result, we have achieved a PPE (Photosynthetic Photon Efficacy) of 2.4 µmol/J and we provide all the photons needed for photosynthesis. With independent third party validation, our 320 W foldable bar light can replace a traditional 600W HPS lamp over the same area; that means at least a 46% savings on energy costs, with 25% better PPFD (Photosynthetic Photon Flux Density) uniformity.
Applicable Scenarios
Commercial Greenhouses: The high-transmittance "octopus-style" bar layout deprives the least amount of sunlight from nature while providing supplemental lighting.
Vertical Farming Systems: Ranges from 120W to 320W power levels; compact form factor and minimal heat emission allow these to be used in rack systems with minimal vertical space.
Indoor Medical Cannabis Cultivation: Includes professional maze with master-unit daisy-chaining and 0-10V dimming for fine PPFD control throughout the vegetative and flowering cycles.
Research & Plant Factories: In combination with smart app control, it can realize the experiment and standardized production requirement of various kinds of crops, of spectral components and photoperiods.
