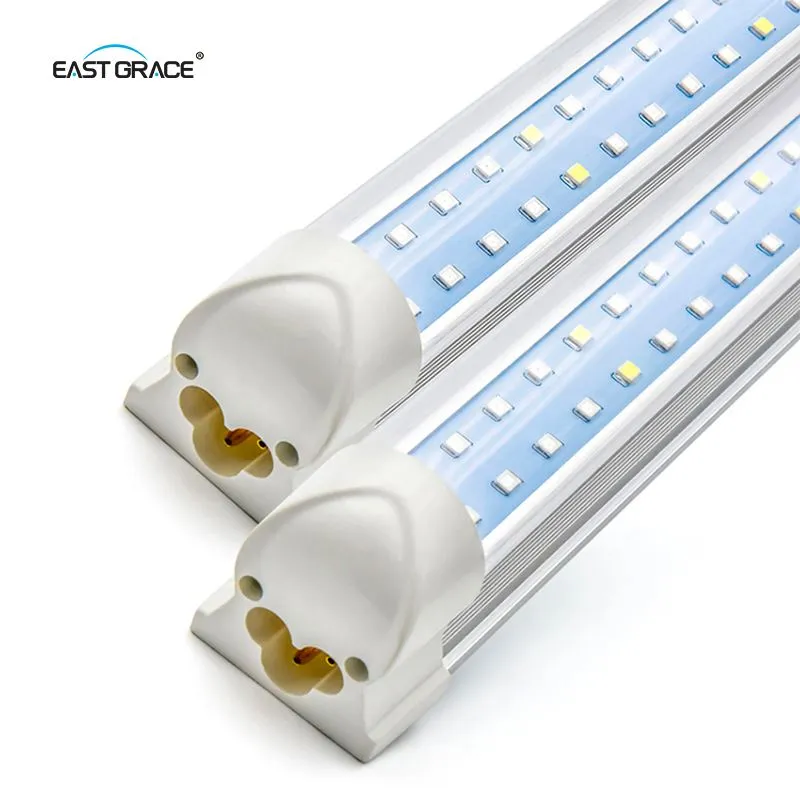

Greenhouse T8 Integrated LED Tube Grow Light

The T8 Integrated LED Tube Grow Light is an efficient type of professional light specifically created to tackle any issues with the growth of plants that result from poor environmental conditions or lack of proper sunlight. The T8 Integrated LED Tube Grow Lights ensure that the light emitted is consistent, and its quality and wavelengths are tailored to enhance the process of photosynthesis. The T8 series includes models with different sizes and wattages, ranging from 2ft to 5ft long, and 15W to 36W, respectively. Its elegant cylindrical shape combines aesthetic appeal with practicality, and its ability to be connected in series is a particularly significant advantage.

• Full Spectrum & Customization: Spectrum choices range from Red+Blue spectrum, Full Spectrum to custom ratios (Red: Blue ratio 3:1) that help cater for all stages of growth from germination to flowering.
• High-Efficiency Chips: Utilizes top-brand 2835 LEDs, ensuring high photon efficacy (PPE ≈ 2.0 µmol/J), better light penetration, and longer lifespan.

Structural Analysis:
The light features a simple yet effective two-part design:

1. Fixture Body: A long, rectangular aluminum housing that acts as a heat sink.

2. Diffuser: A PC cover that protects the LEDs and ensures wide, uniform light dispersion without hotspots.

Standard Installation (Using Clips):

1. Fix the Clip: Secure the provided mounting clips to your overhead structure (shelf, ceiling, etc.) using appropriate screws (not always included).

2. Fasten the Light: Slide the T8 grow light bar into the fixed clip until it snaps securely into place.

3. Power Connection: Simply plug the electricity plug to the lights before plugging into the electrical source. To plug daisy chained lights, connect the light first and then plug to electrical outlet.

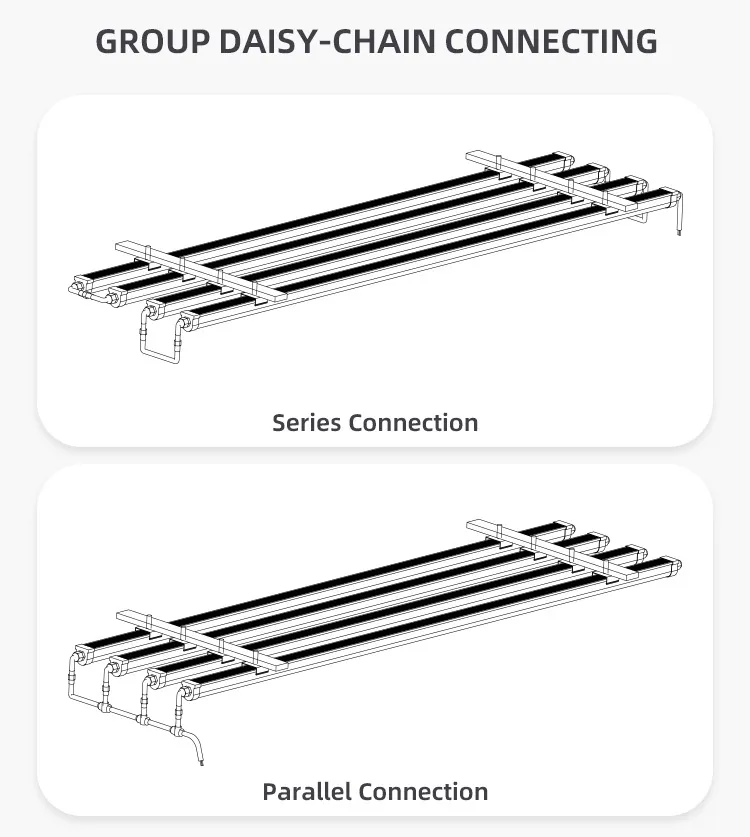

• Connect the male end of a Daisy Chain Connect Cable (15cm or 30cm available) to the female port of one light.
• Connect the other end to the male input port of the next light.
• Repeat the process for up to six 15W units. Only the first light in the chain needs to be connected to a power outlet via its main power cable.
