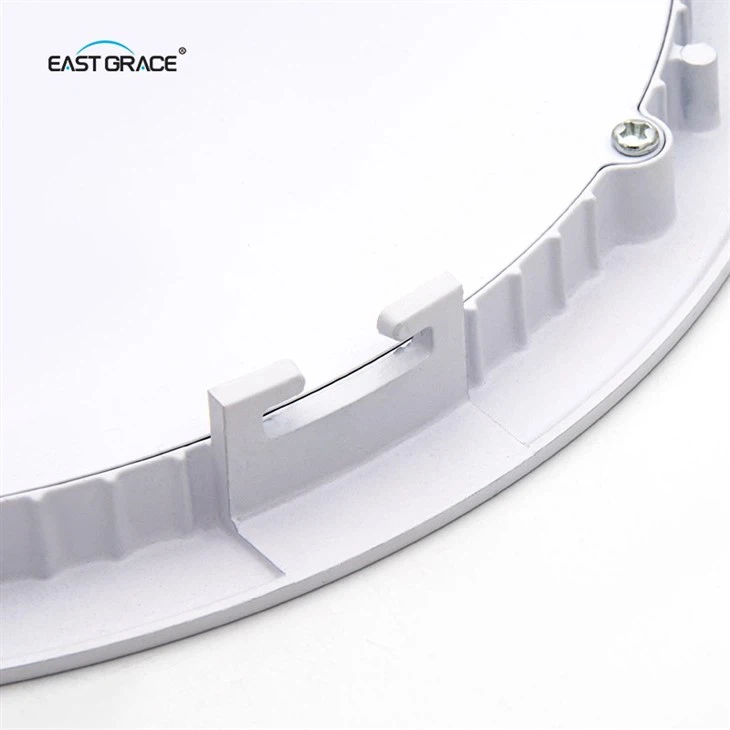

Slim Recessed Round LED Panel Light A
Products Description
Slim Recessed Round LED Panel Light A is an innovative product that combines modern aesthetics with efficient lighting technology, designed for a variety of commercial and home environments. It adopts an ultra-thin design and can be perfectly embedded in the ceiling to provide uniform and soft light. It is widely used in offices, shopping malls, hotels, conference rooms, restaurants, and homes, becoming an ideal choice in the field of modern lighting.
This LED panel light uses high-efficiency LED light sources, providing bright and uniform light and significant energy-saving advantages. At the same time, excellent CRI makes the light more natural and the color reproduction of objects more realistic, which is very suitable for demanding lighting environments. Users can also choose different color temperatures according to actual needs to meet diverse lighting needs. In addition, the lamp also adopts a high-quality aluminum alloy shell, which has good heat dissipation performance and effectively prolongs the service life.
In short, Slim Recessed Round LED Panel Light A has become an ideal choice for modern lighting solutions with its stylish appearance, energy-saving and high efficiency, long life, and environmental protection advantages. It is an ideal lighting solution for a variety of environments such as homes, offices, and commercial spaces.
Product Specification
| Product Name | Slim Recessed Round LED Panel Light A | ||||
| Model | EG-SRPL-RA70 | EG-SRPL-RA105 | EG-SRPL-RA155 | EG-SRPL-RA210 | EG-SRPL-RA285 |
| Product Size(mm) | D80*H15 | D120*H15 | D170*H15 | D225*H15 | D300*H15 |
| Cut Hole Size(mm) | D70-75 | D105 | D155 | D205-210 | D285 |
| Wattage(W) | 3W | 6W | 12W | 18W | 24W |
| CCT |     |
||||
| LED Brand | SANAN 2835 | ||||
| Product Materials | Aluminum+PMMA | ||||
| Lumen Efficiency(Lm/W) | Typ. 80~90; 100~110; | ||||
| Luminous Flux(Lm) | Typ. 240~330 | Typ. 480~660 | Typ. 960~1320 | Typ. 1440~1980 | Typ. 1920~2640 |
| Power Factor(PF) | >0.5/ >0.90 | ||||
| Flicker or Flicker Free | Flicker/ Flicker Free | ||||
| Input voltage(V)/ Frequency(Hz) |
AC165~245V 50/60Hz; AC100~277V 50/60Hz | ||||
| Dimming | Not Dimmable | ||||
| View Angle | 120° | ||||
| IP Rating | IP40 | ||||
| Color Rendering Index(Ra) | Ra>80; Ra>90 | ||||
| Operating Temperature(℃) | -15~40 | ||||
| Warranty | 3 Years | ||||
| Feature | 1. On/Off Function 2. Multiple LED Driver Solutions 3. Available in Tri-Color 4. No Light Leakage |
||||
Product Features
Slim recessed round LED panel light that integrates seamlessly into the ceiling, providing even lighting with a modern aesthetic.Key Features & Specifications：
Design & Construction-Flush Mount: recessed into ceiling
Slim Profile-typically less than 1" (25mm) thick, minimizing ceiling cavity depth requirements.
Technical Advantages
Seamless Transition: Switch between colors via wall switch (3-step control) or smart app (for tunable models).
CRI >90: Ensures vivid, true-to-life color rendering for each temperature.
Flicker-Free: Stable output across all CCTs (PWM-free drivers).
Design Benefits
Mood Customization: Adapt lighting for morning productivity (6500K) → evening relaxation (3000K).
Space Optimization: One fixture serves multiple purposes (e.g., a home office by day → lounge by night).
Energy Efficiency: Maintains ≤10W power consumption per mode (DLC Premium certified).
Ideal Use Cases
Co-Working Spaces: Zone areas with 4000K for desks vs. 3000K for breakout corners.
Retail: Highlight products under 6500K, transition to 3000K at checkout for warmth.
Smart Homes: Sync with circadian rhythms via automation (e.g., 6500K at 8AM → 3000K at 8PM).
Applications
Mounting
Cutout Size: Diameter + 5mm gap (e.g., 305mm for a 300mm fixture).
Mounting: Spring clips or torsion springs for secure attachment to ceiling.
Products Description
EASTGRACE
East Graces has been involved in LED development since 2008, obtain the IEC 62471 of LED product safety in 2016. We are a professional producer at led modules, power supplies and different kinds of component for electronic and lights. Our company has a skilled and experienced technical and manufacturing team, as well as a responsible after-sales department. Concentrated in LED core area expansion, Plant Light to improve agricultural industry efficiently furthermore.
Our main lighting products are separated in the area as followed, commercial, industrial, professional and indoor. East Graces continuing to provide excellency products and earn multiple innovation and patents, thanks to the specialized development team with advanced technology and high-performance automatic equipment endeavor.Our LED grow lighting product series has undergone professional testing and obtained CE/ROHS/FCC/3C certifications, ensuring that the products meet international quality standards.
Each production stage of the product undergoes strict quality control to ensure that it meets the highest standards. Customer satisfaction is our top priority. We have a professional after-sales team, and our professionalism is our commitment to the product.
Providing technical consultant service, design and customize for free
Pleasing to visit the production procedure, inspection facilities and quality management system.
Follow up producing schedule, quality monitoring and offer goods examine
Tracking shipping progress and arrived reminder
FAQ
| Q: Are you manufacturer? |
| A: Yes, East Graces is the professional manufacturer over 16 years. |
| Q: Can I get a sample for quality? |
| A: Sure, we welcome sample order to test and check quality.For some products, we provide free samples, but you need to bear the shipping costs, etc. |
| Q: Does your company provide customized services? In what areas do you provide support? |
| A: Yes, we offer customization your product's label, packaging, design.LED Grow light, we can customize the corresponding spectrum according to your needs for plants. |
| Q: Does the product provide a warranty? |
| A: Yes, we offer 2-5 years warranty to our product.If you have any problems with the product's quality, please contact our after-sales team and we will serve you on time within 24 hours! |
| Q: How to proceed an order for grow light or other products? |
| A: Firstly, let us know your requirements or application;Secondly, We quote according to your requirements or our suggestions;Thirdly, customer confirms the samples and places deposit for formal order;Fourthly, We arrange the production. |
