Introduction

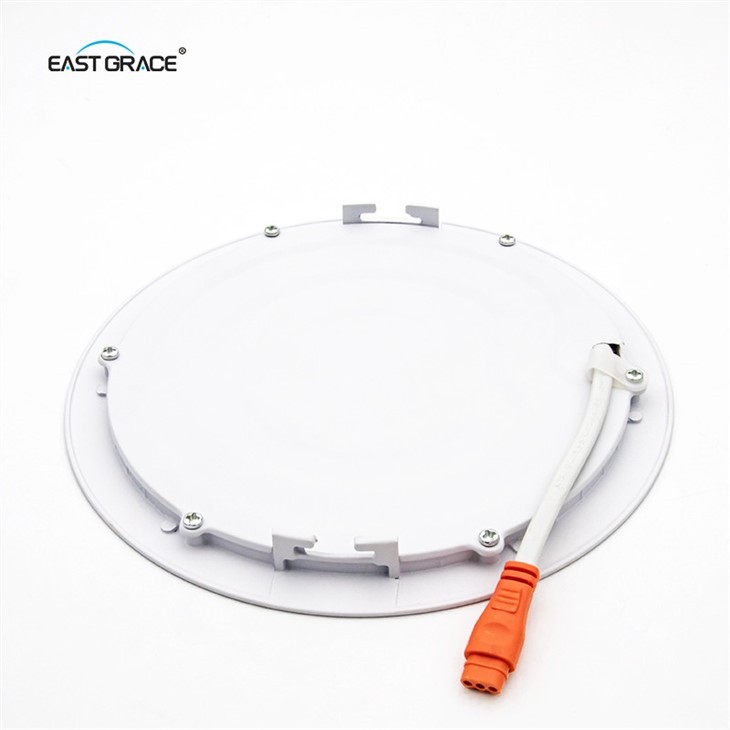

East Grace Slim Recessed Round LED Panel Light B is a highly effective light source, which can be installed on the ceiling. This luminaire exists in five variants, all of which have certain distinctive features. There is a difference both in their sizes and power output: from the smallest variant, which is 80x80x15mm with 3 watts – EG-SRPL-RB70, to the largest one, which is 300x300x15mm with 24 watts – EG-SRPL-RB285. The main advantage of this light source is the thinness of its design, only 15mm deep. This allows for installing it even in those rooms where the height of the ceiling is not that great.at can be recessed. It should be mentioned that there exist five variants of this light source, which differ in specifications. They also have a different size and power output, starting from 80x80x15mm with 3 watts in the EG-SRPL-RB70 variant and ending with 300x300x15mm with 24 watts in the EG-SRPL-RB285 variant.
These lights are made of aluminum and polystyrene. They are equipped with high-performance LED chips that deliver a luminous flux of 330 to 2,640 lumens. Their color rendering index is high (over 80 Ra). Flicker-free, they guarantee optimal illumination for maximum visual comfort. They can be operated with two different drivers: one for input voltages of 165 to 245 V AC and one for 100 to 277 V AC, both at 50/60 Hz. Their beam angle is 120°. The IP40 protection rating makes them suitable for indoor use. They are not dimmable but operate in a temperature range of -15 °C to 40 °C. They come with a one-year warranty and offer the following features: on/off function, compatibility with various LED drivers, tri-color illumination, and an affordable price.
Several aspects must be considered when using the Slim Recessed Round LED Panel Light B. For installation, ensure the correct cutout dimensions (e.g., 70 x 70 mm for EG-SRPL-RB70) and a stable mounting surface to prevent deformation. The electrical system must be compatible with the local power supply and the recommended voltage range. Heat dissipation is crucial due to the limited airflow in recessed luminaires, as this can reduce the lifespan of the LEDs. Therefore, the use of high-quality aluminum heat sinks is essential. To prevent variations in light intensity and yellowing, high-quality LED chips and light guides are necessary to avoid uneven light distribution and yellowing. These luminaires are not dimmable. The one-year warranty applies to a typical LED lifespan of over 15,000 hours.
