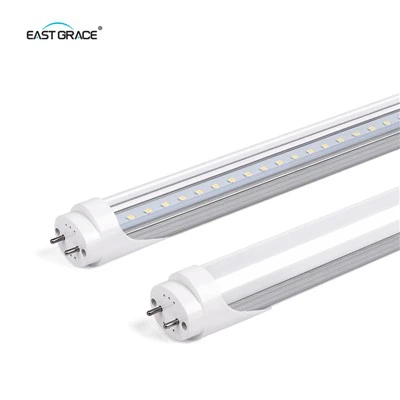

T8 PC Aluminum LED Tube Light
Products Description
The East Grace T8 PC aluminum LED tube is a high-quality, energy-efficient lighting solution designed as a direct replacement for traditional T8 fluorescent tubes. Equipped with state-of-the-art SMD2835 LED chips, this tube offers superior brightness, uniform illumination, and exceptional color accuracy, all within a robust aluminum housing covered by a high-transparency polycarbonate cover. Available in wattages from 5W to 25W, it meets a wide range of lighting needs while delivering energy savings of over 60% compared to traditional fluorescent tubes. With a lifespan exceeding 50,000 hours and a 5-year warranty, it minimizes maintenance costs and environmental impact, as it is mercury-free.
Specification Sheet
| Model | EG-T8PAT-0305X | EG-T8PAT-0610X | EG-T8PAT-0915X | EG-T8PAT-1220X | EG-T8PAT-1525X |
| Product Size(mm) | L302*D26 | L602*D26 | L907*D26 | L1212*D26 | L1512*D26 |
| Wattage(W) | 5W | 10W | 15W | 20W | 25W |
| LED Qty | 42 | 84 | 125 | 168 | 210 |
| CCT | 3000K/4000K/6500K | ||||
| LED Brand | SANAN 2835 | ||||
| Product Materials | Aluminum+PC | ||||
| Lumen Efficiency(Lm/W) | Typ. 120~130; 140~150 | ||||
| Luminous Flux(Lm) | Typ. 600~700 | Typ. 1200~1400 | Typ. 1800~2100 | Typ. 2600~3000 | Typ. 3250~3750 |
| Power Factor(PF) | >0.95 | ||||
| Flicker or Flicker Free | Flicker/ Flicker Free | ||||
| Input voltage(V)/ Frequency(Hz) |
AC165~245V 50/60Hz; AC100~277V 50/60Hz | ||||
| End Cap | G13 | ||||
| Color Rendering Index(Ra) | Ra>80; Ra>90 | ||||
| Warranty | 5 Years | ||||
| Feature | Built-in constant current driver Super High Efficiency |
||||
Products Features
- High QualitySMD2835 LEDs: Premium chips ensure low lumen decay, long life, and uniform light distribution without dark spots.
- Robust Build: Die-cast aluminum body for excellent heat dissipation and a shatter-resistant PC cover for safety and light uniformity.
- Wide Voltage Compatibility: AC 165-265V/50-60Hz input supports global use, with unique EMC filter design for interference-free performance.
- Super High Efficiency: Up to 142 lm/W luminous efficacy, converting more energy into light for substantial cost reductions-ideal for high-usage environments.
- High Color Rendering Index (CRI Ra90): Provides accurate color depiction, outperforming standard T8 LEDs (often Ra80), making it suitable for retail and creative spaces where visual fidelity matters.
- Flicker-Free Operation: Eliminates eye strain and headaches with stable, constant current drive.
Application Scenarios
- 3000K Warm Yellow: Bedrooms, living rooms, hotels-creates cozy, relaxing atmospheres.
- 4000K Natural White: Homes, retail, general spaces-balanced and natural color rendering.
- 6500K Cool White: Offices, study rooms, workshops, supermarkets-enhances focus and productivity.
