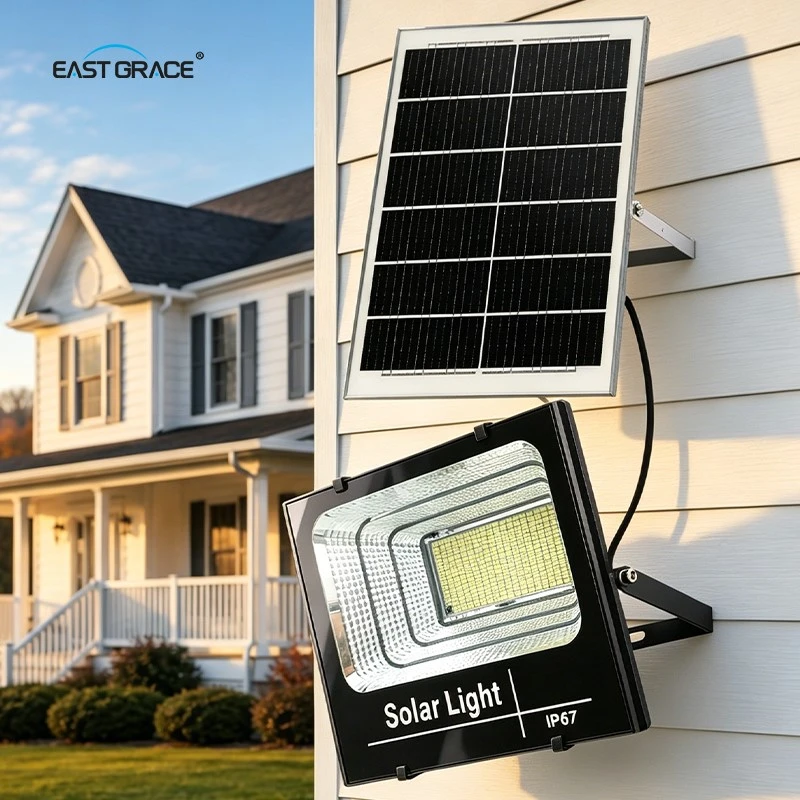

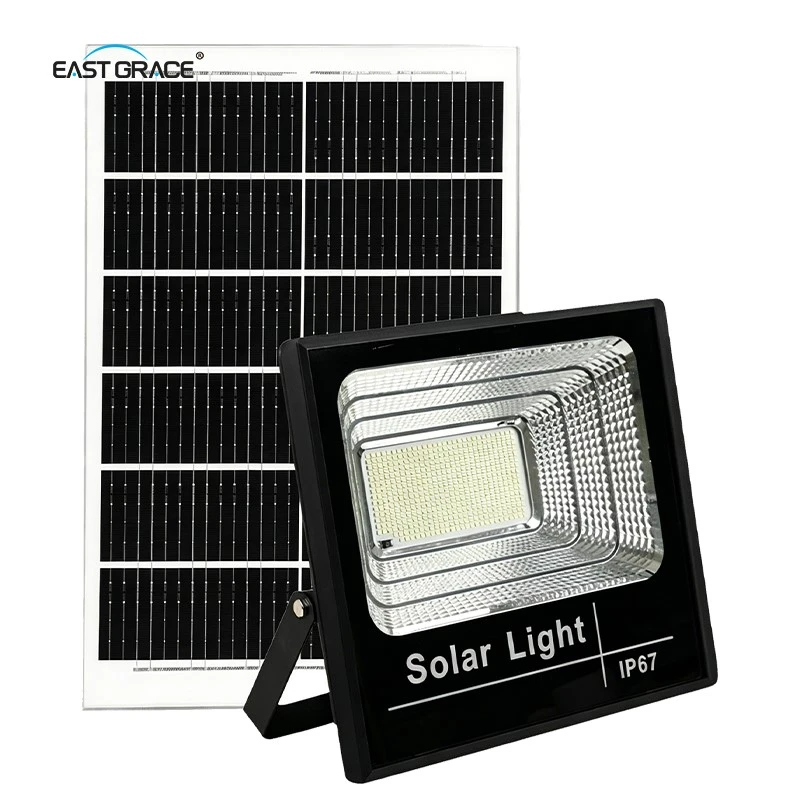

EAST GRACE 1000W Solar LED Flood Light (EG-SFL01-1000)
Product Description
The EAST GRACE 1000W Solar LED Flood Light is the flagship ultra-high-power, completely wireless solar-powered outdoor lighting fixture engineered for the largest and most demanding applications. It features a massive 1000W LED array, a high-efficiency 6V/30W monocrystalline solar panel, and a robust 20000mAh lithium iron phosphate battery. With an IP67 waterproof rating and intelligent features, it delivers exceptional brightness and uniform illumination covering up to 200 square meters, making it one of the most powerful solar flood light solutions available for industrial, commercial, agricultural, and large-scale outdoor projects.
Product Features
- Mega-Power Illumination: With 550 high-quality SMD 5730 LEDs and 1000W output, it generates intense, far-reaching light that covers up to 200 square meters, providing unmatched visibility and security for vast outdoor areas that demand maximum brightness and coverage.
- High-Efficiency Solar Power System: The large 6V/30W solar panel enables fast and efficient charging, allowing the light to maintain powerful performance even in variable weather, supporting consistent operation for 1–2 rainy days on a full charge.

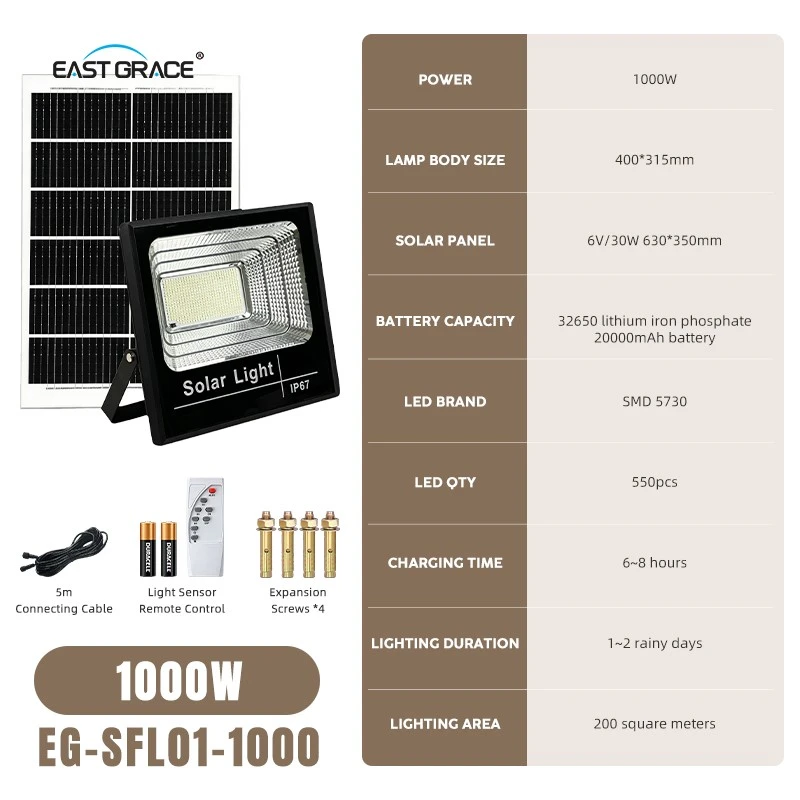

Specifications
- Power: 1000W
- Lamp Body Size: 400 × 315mm
- Solar Panel Size: 630 × 350mm
- Solar Panel: 6V/30W
- Battery Capacity: 20000mAh
- LED: SMD 5730, 550pcs
- Charging Time: 6–8 hours
- Lighting Duration: 1–2 rainy days
- Lighting Area: 200 square meters
- IP Rating: IP67
- Accessories: 5m connecting cable, remote control, expansion screws ×4
Installation Guide
1. Pick a sunny spot for the solar panel
Place it where it receives direct sunlight for at least 6 hours a day – away from trees, roofs, or walls that cast shadows. For best results, face it south (if you're in the northern hemisphere) or north (southern hemisphere).
2. Fix the lamp body to the wall
Mark the drilling points using a level to keep it straight. Drill the holes, insert the supplied anchors, and screw the lamp firmly into place. Do not over-tighten.
3. Mount the panel separately with the 5m cable
Attach the panel's bracket to the sunniest surface, then run the extension cable neatly along the wall (use cable clips if needed). Plug the connectors into both the panel and the lamp – make sure they click in securely.
4. Test the sensor & remote control
Cover the solar panel with a dark cloth – the lamp should turn on within seconds. Remove the cloth and it should switch off. Use the remote to try all modes (brightness, timer, motion sensor, etc.) and confirm they work as expected.
5. Angle the head and let it run automatically
Tilt or rotate the lamp head to aim the light where you need it, then tighten the adjustment screws. At dusk, the lamp will turn on automatically and operate in your chosen mode through the night.
